Product information
Details

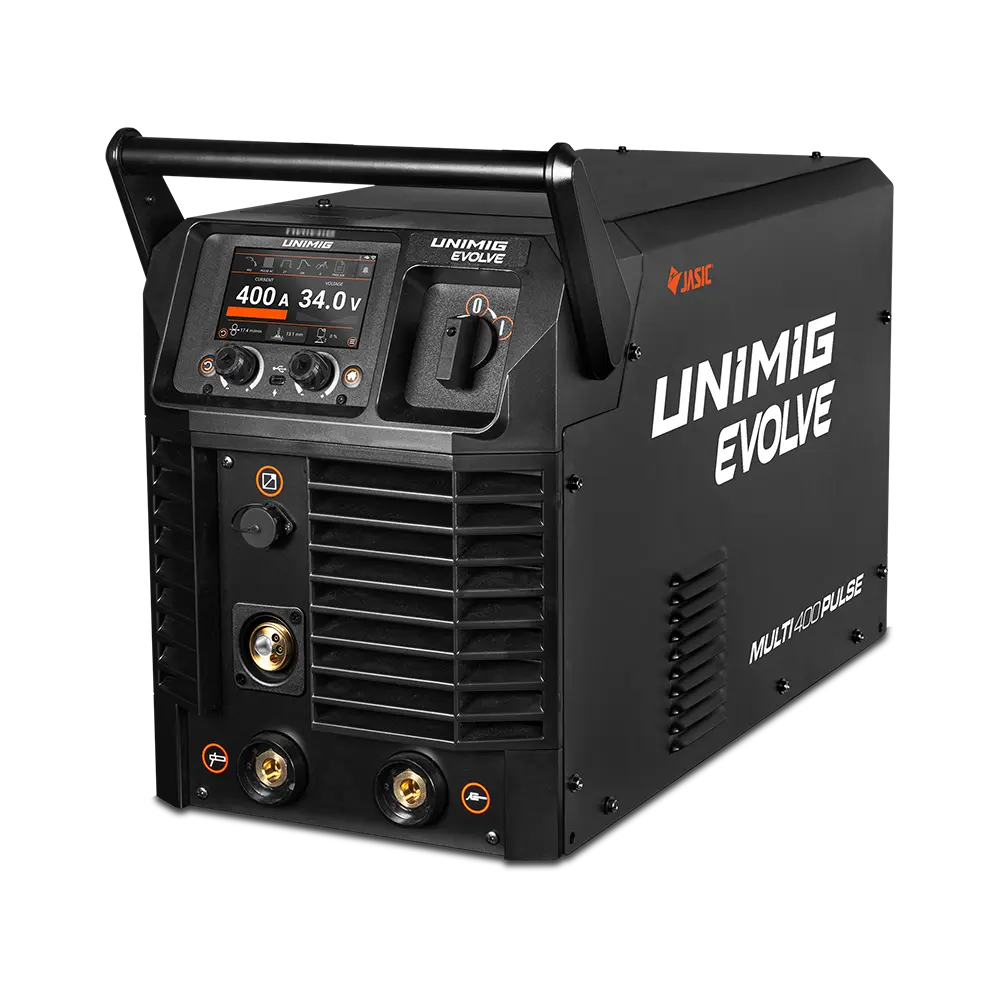

The UNIMIG EVOLVE MULTI 400 PULSE M350 Package (U11231) is a high-output industrial MIG/MMA welder built for fabrication, heavy manufacturing and demanding workshop environments. With dual-voltage operation, advanced Pulse & Double Pulse MIG modes and exceptional duty cycles, it provides premium arc control across steel, stainless and aluminium applications.
Key Features
- Dual-voltage: operate on 240V single-phase or 415V three-phase
- Pulse & Double Pulse MIG for superior aluminium and thin sheet welding
- Industrial-duty output up to 400A (three-phase)
- Full roller set included for steel, aluminium and specialty wires
- VRD safety system
- 5-year UNIMIG warranty
In the Box
- EVOLVE MULTI 400 PULSE Welder
- 3m M350 MIG Torch
- Consumable Kit
- 3m 500A Earth Clamp & Lead
- Twin Gauge Argon Regulator
- 1.8m Quick-Connect Gas Hose
- Operating Manual
- 2x 1.0–1.2mm U-Groove Rollers
- 2x 1.2–1.6mm U-Groove Rollers
- 2x 0.9–1.2mm V-Groove Rollers
- 2x 1.2–1.6mm V-Groove Rollers
| MACHINE SPECIFICATIONS | |
| Primary input voltage | 240 V, single-phase / 415 V, three-phase |
| Supply plug | 32 A three-phase / 15 A single-phase via plug adapter (maximum 250 A MIG output on single-phase) |
| Ieff (A) | 14.4 (Single-Phase) / 18.3 (Three-Phase) |
| Imax (A) | 32.2 (Single-Phase) / 24.5 (Three-Phase) |
| Open circuit voltage (V) | 70 |
| Open circuit voltage with VRD active (V) | 9.5 V |
| Protection class | IP21S |
| Insulation class | H |
| Minimum generator (kVA) | 13 (Single-Phase) / 23 (Three-Phase) |
| Dinse Connector | 35/50 |
| Standard | AS 60974.1 |
| Warranty (years) | 5 |
| Suitable materials | MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze MMA: Mild Steel, Stainless Steel, Cast Iron |
| MIG SPECIFICATIONS | |
| MIG welding current range | 20–250 A (single-phase) / 20–400 A (three-phase) |
| MIG duty cycle at 40°C | 20% at 250 A (single-phase); 60% at 144 A (single-phase); 100% at 112 A (single-phase); ; 60% at 400 A (three-phase); 100% at 310 A (three-phase) |
| MIG wire size range | 0.6–1.6 mm |
| MIG wire spool size | 5kg (D200); 15kg (D300) |
| MIG welding thickness range | 0.6–20 mm (Single Pass), >20 mm (Multi Pass) |
| Drive Roller Size | 30/22 |
| MMA SPECIFICATIONS | |
| Stick welding current range | 20–225 A (single-phase) / 20–400 A (three-phase) |
| Stick duty cycle at 40°C | 20% at 225 A (single-phase); 60% at 130 A (single-phase); 100% at 100 A (single-phase); ; 60% at 400 A (three-phase); 100% at 310 A (three-phase) |
| Stick electrode range | 1.6–6 mm |
| Stick welding thickness range | 2–10 mm (Single Pass), >10 mm (Multi Pass) |
Package specifications
| Complete package net weight (kg) | 49 |
| Packaged weight (kg) | 63.4 |
| Package dimensions (mm) | 842 × 302 × 395 |
AC/DC TIG module, trolley, water cooler and external wire feeder are optional.
TIG welding and AC MIG require the optional EVOLVE AC/DC TIG module. It is not included in this package.
